CSD-A9500红外测温金属探测安检门(含金属探测)

订购/咨询热线:400-8300-097

CSD-A9500中神盾人体测温安检门采用磁电兼容探测源技术制造,测量人体额头或手腕及手掌表面温度,测温感应光学组件将人体额头或手腕及手掌表面温度发射和反射的能量汇集到传感器上,通过电子组件将此信息转化成温度读数并显示在显示面板上,当温度读数超过高温报警值时,仪器会发出报警声,同时红色报警灯点亮。是现代医学中的非常重要的仪器。防震设计,具有探测精度高,抗干扰能力极强、计数准确、稳定性好等特点。中神盾人体测温安检门主要用于于出入境口岸、机场、车站、码头、医院、政府机关、工厂、学校、宾馆和写字楼等公共场所人体温度的检测,便于筛检具有发热症状的病人以减少传染和疫情蔓延。


产品优势

无感测温:对通过安检门的人员进行温度监测,测试距离:0.05-0.3米,测试高度:不低于1.5米

人体温度筛查:采用比利时进口Melexis原装高精度医疗远距离测温芯片,检测距离远、精度高、质量性能稳定,全方位对通行人员进行体温扫描筛查.

温度误差: 0.1℃-0.3℃

测温语音提示:语音播报 “体温正常”“请复查体温”

超高检测灵敏度: 可检测到半个回形针大小的金属,不会漏报和串报.

独创飞物报警功能: 金属物体从门中间抛过也会准确报警.

智能分辨: 能区分铁磁质和非铁磁质金属物品.

超低探测高度: 离地2CM以上的金属物体进入检测区域均可报警.

多区位报警功能: 人体不同位置的多个金属通过安检门时同时报警,并可以指示多个金属的位置.

开机自诊断功能: 开机时对系统进行自检,并显示检测结果.

多区域独立探测: 12个独立探测区域,每个区域1000级灵敏度等级调节.

模块化组件设计: 运输、维护方便快捷.

产品特点

探测精度:最高灵敏度在门正中间检测到一根大头针(或1/2)回形针,不会漏报和串报.可在排除皮带扣、皮鞋、文胸等物品的影响检测到150克以上的铜、铝、锌等贵金属或管制刀具和枪支.

为满足客户所探测不同的违禁物品,可根据实际使用情况预先设定金属物品的可能部位及体积、重量、大小进行适当的灵敏度调节,排除皮带扣、钥匙、首饰、硬币等物品的误报,最高灵敏度可探测到一枚回形针大小的金属。

抗干扰设计:强大的 DSP 信号处理数字过滤系统,采用当今世界最先进的磁电兼容技术形成极佳的抗电磁干扰能力和较强的耐触摸和碰撞能力。根据周围环境,开机自动设置频率避开干扰,多台门并排工作时相互靠拢,对探测性能也无明显影响.

区位显示:产品分成12防区,可疑物能在每个区域准确显示.

频率设置:可自动设11种频率,不同频率设定不同铃声,也可进行手动设频,7000-8999Hz任意设置.

灵敏度调节: 灵敏度可以根据需要调整,共有1000级灵敏度.

统计人数:双侧对射红外可以准确检测到通过人数和报警人数.

四侧定位灯:门体四侧均带有LED灯,能直观地通过定位灯显示违禁物品所在区域,视角可达360°.

声光报警: 9款可选择报警声音,每款均有8级音调可调,报警时间长短可调.

面板显示:采用液晶(LCD)显示,中文、英文菜单相互切换.

贴片生产:全自动线圈缠绕及主机的贴片生产能更精确的达到探测效果,具有连续工作特点。

防震设计:全球独创防震设计,在刮风或人为晃动下不会误报.

一键设置:内置智能芯片,储存多种场所推荐探测灵敏度设定值,方便用户快速选择。

门体材质:外表采用PVC,与进口品牌材质完全相同,美观、大方、防火、防腐蚀、防潮和防撞,不变形.

遥控操作:使用遥控器行设置,参数可以设密码保护,非授权人员无法进行操作.

网络管理:预留通讯接口,可以与电脑、摄像头、三轧辊等连接,监控、统计探测情况,调整安检门参数.

安全保护: 符合国际安全标准,对心脏起博器佩带者、孕妇、磁性介质等无害.

技术标准

全面通过CE、FCC、RoHS认证

辐射参照EN50081-1标准执行;

抗干扰参照EN50082-1标准执行;

通过ISO9001:2008质量管理体系认证;

通过ISO14001环境管理体系认证;

通过OHSAS职业健康安全管理体系认证;

严格执行GB15210-2003通过式金属探测器国家标准.

基本参数

运输重量:约70 kg

功耗:<15W

工作温度:-40℃~80℃

工作湿度:95%,无冷凝

外接电源:187V~242V,50/60HZ

工作频率: 根据安装环境自行调节

外形尺寸:(mm)2220(高)×820(宽)×500(深)

通道尺寸:(mm)2000(高)×700(宽)×500(深)



CSD-A9500 temperature measurement walk through metal detector

CSD-A9500 temperature measurement walk through metal detector: The infrared temperature measurement is integrated with the security gate of metal detection. Before passing the metal security check, the infrared body temperature measurement is carried out first, and the sound alarm indicates abnormal body temperature, effectively preventing the spread of scale diseases;

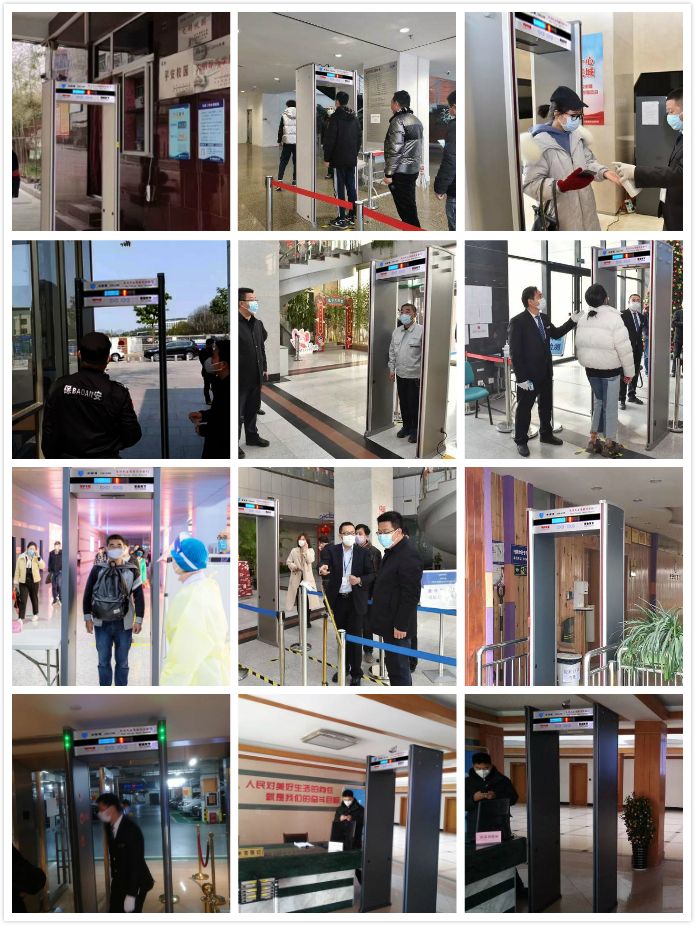

Adopts international advanced electromagnetic compatibility design and shock resistant design, has a high sensitivity, strong anti-interference ability and aseismatic ability, suitable for controlled knives and guns and other dangerous goods safety inspection, widely used in prisons, courts, schools, hospitals, electronics companies, port, the passenger, exhibition halls, convention centre, major celebrations, concerts and other important places.

Non-inductive temperature measurement: Temperature monitoring can be conducted on the personnel passing through the security gate. Test distance: 0.05-0.3 m, test height: not less than 1.5 m.

Human temperature screening: The built-in high-precision micro-24-hour dynamic infrared temperature monitor provides all-directional temperature scanning and screening for passers.

High-end parts: Melexis original medical infrared detector imported from Belgium is adopted, with long detection distance, high precision and stable quality performance, which is highly configured in China.

Ultra-high detection sensitivity: Can detect the size of half a paper clip of metal, no leakage and string.

Display mode: liquid screen display

Original flight alarm function: Throwing a metal object through the middle of a door also gives an accurate warning.

Intelligent resolution: Able to distinguish ferromagnetic and non-ferromagnetic metal objects.

Ultra low sounding altitude: Any metal object more than 2CM above the ground entering the detection area can alarm

Multi zones alarm function: When a plurality of metals in different positions of the human body pass through the security gate, the alarm is raised simultaneously and the position of the plurality of metals can be indicated.

Metal size display: The intensity indicator will display the amount of metal when the alarm is given.

Startup self-diagnosis function: Self-check the system and display the test results.

Modular component design: Convenient transportation and maintenance.

Sensitivity of detection: The highest sensitivity detected a one RMB coin in the middle of the door, which would not be misreported or misreported. It could detect precious metals such as copper, aluminum and zinc above 150 grams, or controlled knives and guns, excluding the influence of belt buckles, leather shoes and bras.

Anti-interference design: According to the surrounding environment, the starting frequency is automatically set to avoid interference, and when multiple doors work side by side, they are close to each other, which has no significant impact on the detection performance.

Frequency set: 11 kinds of frequencies can be set automatically, and different tones can be set at different frequencies. Frequency can also be set manually.

Sensitivity adjustable: Sensitivity can be adjusted as needed, a total of 1999 sensitivity.

Passenger count: Bilateral contraption infrared can accurately detect the number of people passing through and alarm number.

Four sides alarm bars: Two sides of the door body are equipped with LED lights, which can visually display the area where prohibited items are located by positioning lights.

Sound-light alarm: 9 types of alarm sound can be selected, each of which has an 8-level adjustable tone and an adjustable alarm time.

Panel design: LED display, Chinese and English panel switch.

Shockproof design: The world's original seismic design, in the wind or artificial shaking under the false alarm.

One key set: The built-in smart chip can store the set value of detection sensitivity recommended by a variety of places, making it convenient for users to choose quickly.

Frame materiel: PVC appearance, and imported brand material is completely the same, beautiful, generous, fire, corrosion, moisture and anti - collision, deformation.

Remote control: Use the remote control to set the parameters. The parameters can be password protected, which can’t be operated by unauthorized personnel.

Network management: Reserved communication interface, can be connected with computer, camera, three rollers, monitoring, statistical detection, adjust the security gate parameters.

Safety protection: comply with international safety standards, it is harmless to heart pacemaker wearers, pregnant women, magnetic media, etc.

Through the European Union CE, FCC, RoHS certification;

Radiation shall be carried out in accordance with EN50081-1;

Anti-interference shall be implemented according to EN50082-1 standard;

Passed ISO 9001:2008 Quality Management System certification;

Passed ISO 14001 Environment Management System Certification;
